LISSY ® Automated Liquid Handling Platform

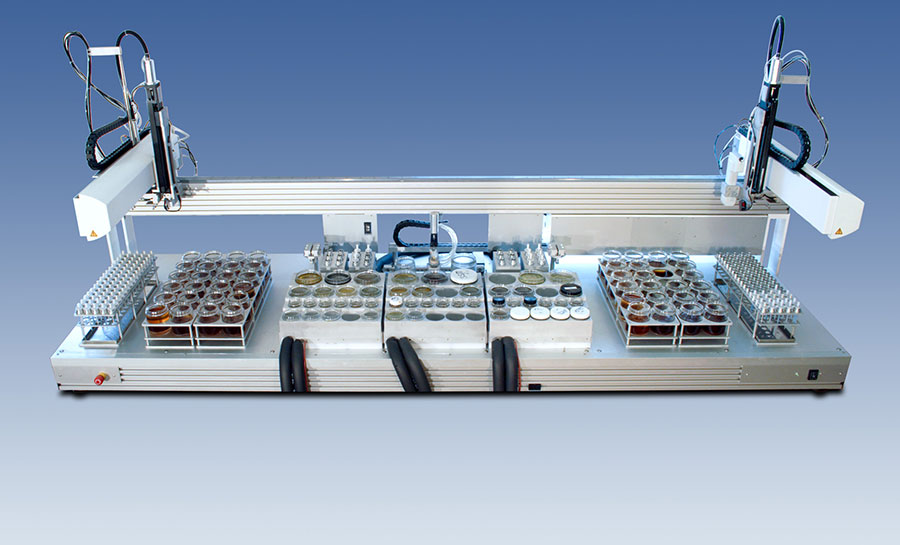

LISSY is a truly modular state of the art robotic system, combining sophisticated and flexible liquid handling with robotic manipulation. The modern, uncomplicated design integrates robotic and liquid handling functionality into a robotic arm, which glides on an x-rail to access racks modules on or off the workbench.

LISSY is available with one arm with up to 4 dispensing tips. High working speed, rapid arm movements and a compact syringe pump make LISSY much faster than most systems on the market. Using the gripper tool, plates can be picked up and moved.
As with all Zinsser Analytic systems, the LISSY can be custom designed using our current tools or by developing new tools to suit your application. Should your requirements change in the future it can be upgraded with new tools and options.

The LISSY can be configured with your choices from our menu of available tools that offer enhanced capabilities beyond traditional pipetting and liquid handling. This provides you with the power to accomplish more with automation, even including tasks such as capping and decapping vials, working with very viscous liquids, moving powders as well as liquids, and more. Use the TOOLS menu to the right to see more information about these options.

Intelligent Software

• drag and drop methods from implemented method library
• access to all liquid handling parameters
• simulation mode for method testing
• cherry picking by liquid handling, moving tubes or weighing
• generic methods with user input regarding numbers of samples and rack types
• description of possible actions
• complete audit trail scheduling
• import and export of data e.g. in excel

System Configurations

• Universal Liquid Handling System with integrated handler for transportation of plates and pick up of tools
• Equipped with up to 4 stainless steel single channel pipetting probes; independent variable spacing between the probes (min. 8mm, max.38mm) liquid level detection at each probe; up to 4 precision syringe pumps with syringes (500ul, 1ml, 2.5ml, 5ml)
• Wash station
• Software package WinLISSY complete with PC, keyboard and TFT monitor

Dimensions

• 900 x 710 x 550 mm (WxDxH) - work area 720 x 290mm
• 1200 x 710 x 550 mm (WxDxH) - work area 1000 x 290mm
• 2000 x 710 x 550 mm (WxDxH) - work area 1800 x 290mm

Other sizes available on request
