HPLC Syringes for Manual Injection

These syringes have the 22 gauge needles with flat tips and fit the common manual injectors, including: Rheodyne, Varian, Shimadzu, Knauer, Agilent, Beckman/Altex, and Valco VISF-2.
Main Uses: Sample injection for HPLC valves.
Precision: < ±1% of the volume.

syringes HPLC manual

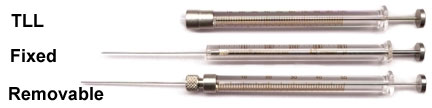

Syringes are available in 3 styles as shown above: Fixed Needle, Removable Needle, and TLL Luer Lock, and with 3 types of plungers as described below.

STAINLESS STEEL PLUNGER

Needle Tip Style   Needle Tip B   Needle Tip B   Needle Tip TLL
Needle Length (mm)   51 51
Volume OD/Gauge FIXED   REMOVABLE   TLL LUER
5 µl 0.72/22s 2101302 $34.00 2101306 $51.50 - -
10 µl 0.72/22s 2101402 $31.00 2101406 $56.50 - -
25 µl 0.72/22s 2101502 $34.00 2101506 $47.00 - -
50 µl 0.72/22s 2101602 $37.00 2101606 $55.00 2101609 $66.00
100 µl 0.72/22s 2101702 $40.50 2101706 $55.00 2101709 $66.00
250 µl 0.72/22 2101802 $43.50 2101806 $58.00 2101809 $66.00
500 µl 0.72/22 2101902 $47.00 2101906 $58.00 2101909 $66.00

STAINLESS STEEL PLUNGER WITH PTFE SEAL (gas - tight)

Needle Tip Style   Needle Tip B   Needle Tip B   Needle Tip TLL
Needle Length (mm)   51   51   -
Volume OD/Gauge FIXED   pixelREMOVABLE   TLL LUER
5 µl 0.72/22s 2601302 $55.00 2601306 $55.00 - -
10 µl 0.72/22s 2601402 $42.00 2601406 $48.50 - -
25 µl 0.72/22s 2601502 $42.00 2601506 $55.00 - -
50 µl 0.72/22s 2601602 $45.00 2601606 $54.00 2601609 $63.00
100 µl 0.72/22s 2601702 $48.50 2601706 $59.50 2601709 $63.00
250 µl 0.72/22 2601802 $51.50 2601806 $58.00 2601809 $63.00
500 µl 0.72/22 2601902 $48.50 2601906 $61.00 2601909 $63.00
1.0 ml 0.72/22 2601001 $48.50 2601002 $63.00 2601003 $58.00

FLEXIBLE PLUNGER

Needle Tip Style   Needle Tip B   Needle Tip B   Needle Tip TLL
Needle Length (mm)   51   51   -
Volume OD/Gauge FIXED   REMOVABLE   TLL LUER
5 µl 0.72/22s 2161302 $45.00 2161306 $61.50 - -
10 µl 0.72/22s 2161402 $41.50 2161406 $58.00 - -



Prices subject to change without notice.
